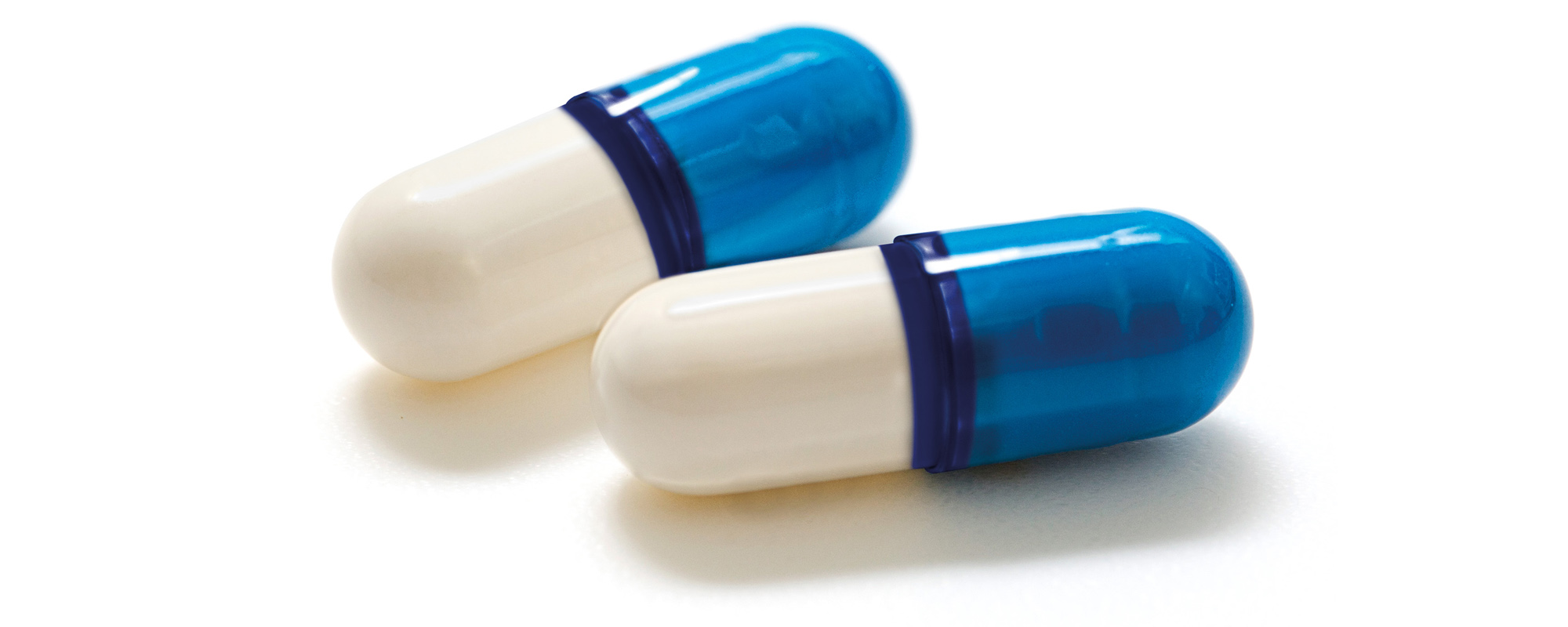

Our bench top automatic capsule sealing, by banding the two capsule portions

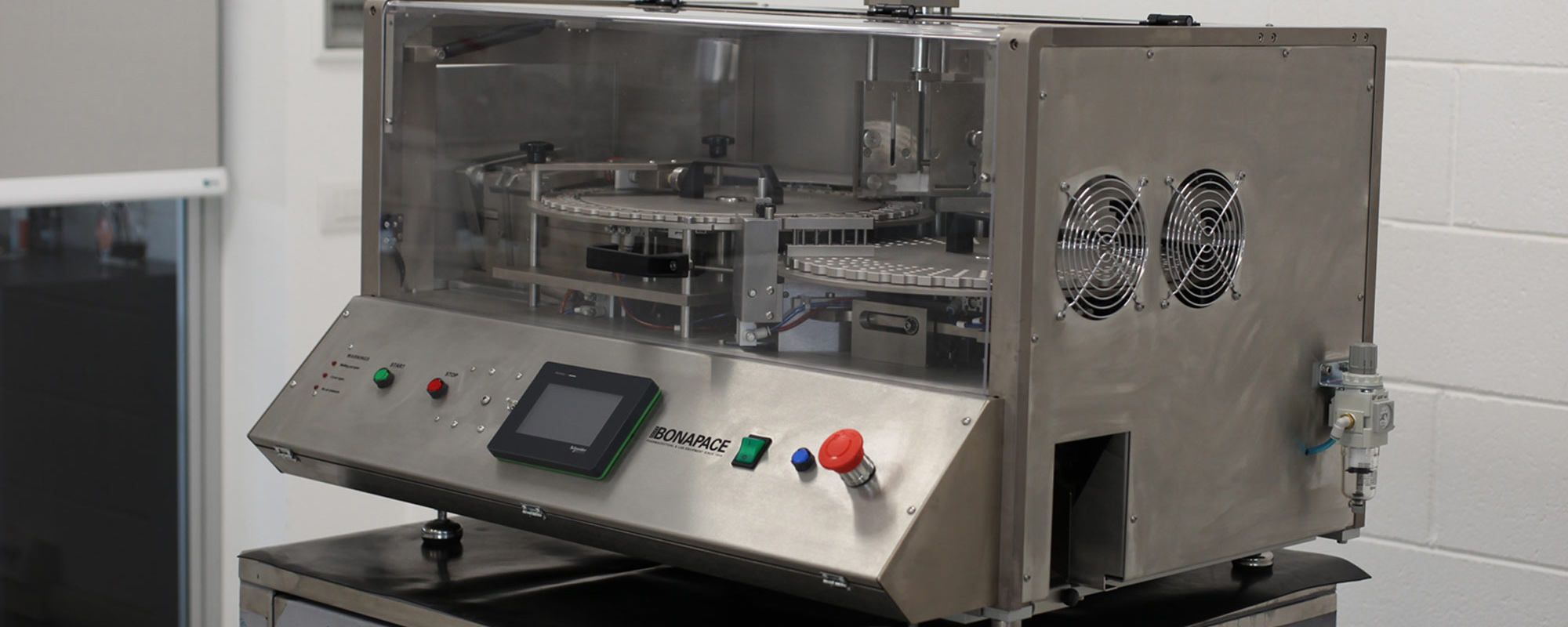

CAPSULE SEALING MACHINE

BD-3000

Introduction

Our bench top automatic capsule sealing, by banding the two capsule portions. BD-3000 is ideal to work with our automatic capsule filling machine IN-CAP equipped with liquid filling station. It can handle a wide range of materials such as: oily-products, high viscosity paste and wax-type products which thanks to the jacketed hopper with stirrer, can handle melted products at temperature up to + 80°C which then solidify at ambient temperature.

Our new capsules sealing machine BD-3000 consists of 4 sections:

  1. capsule’s orientation
  2. capsule’s sealing
  3. capsule’s drying
  4. capsule’s ejection


Technical Info

BD - 3000
OUTPUT3.000 caps per hour
SIZEmm 850 x 610 x 510 h
NET WEIGHT70 kg
SEALING CONDITIONSambient temperature 20-25°C with 50% RU
ELECTRIC VOLTAGE230 volts - 50 cycles - single phase
