CHLORINSITU V
Output 100 – 3,500 g/h of chlorine
Electrolysis systems of type CHLORINSITU V take the place of the chlorine gas system in the swimming pool and only need salt, water and electricity to do so.
Chlorine produced from common salt. Directly on-site. For clean and safe disinfection.
Electrolysis systems of type CHLORINSITU V generate ultra-pure chlorine gas and sodium hydroxide solution free of chloride as required and on site. The solution is produced in a vacuum process from safe raw materials (salt and water); no dangerous chemicals have to be transported or stored, making the process particularly safe.
Function
A saturated sodium chloride solution that is electrolysed in a membrane cell is produced in a salt-dissolving tank. Ultra-pure chlorine gas and diluted residual brine are produced in the anode chamber as part of this process. The chlorine gas produced is suctioned off through an injector (vacuum system) and is fully dissolved as hypochlorous acid in the water being treated. The chlorinated water can be used to disinfect several pools via one or more controllable motor-driven ball valves. The residual brine (anolyte) is discarded.
The sodium hydroxide solution produced in the cathode chamber is stored temporarily and can be used to correct the pH. The hydrogen produced is diluted with fresh air by a fan and discharged safely.
Your benefits
- Chlorination and pH adjustment with a single system
- Exceedingly low chloride and chlorate content
- Production and metering of high-purity hypochlorous acid without temporary storage
- Hypochlorite booster for peaks in demand (Plus system)
- Safe system control with remote diagnosis by Remote Control Engineer
- Excellent service life of the membrane cells thanks to a constant vacuum
Technical Data
- Modern PLC with large display
- Integrated Remote Control Engineer for remote diagnosis and troubleshooting
- Chlorine metering and pH value correction controlled via contact inputs
- Analogue input (optional)
- Modbus or PROFIBUS® (optional)
- Several points of injection (optional)
- Multiple booster pumps (optional) can be used for different water qualities (e.g. brine and freshwater pools)
Technical Detail
| Type/output | Fuse | Power uptake | Salt consumption | Max. consumption of process water | Consumption of cooling water (external) | Brine tank |
|---|---|---|---|---|---|---|
| g/h | A | kW | kg/d | l/h | l/h | l |
| 100 | 3 x 16 | 1.10 | 5 | 60 | - | 210 |
| 200 | 3 x 16 | 1.50 | 10 | 60 | - | 210 |
| 300 | 3 x 16 | 1.90 | 15 | 60 | - | 210 |
| 400 | 3 x 16 | 2.30 | 20 | 60 | - | 210 |
| 500 | 3 x 16 | 2.70 | 25 | 60 | - | 210 |
| 600 | 3 x 20 | 3.10 | 30 | 90 | - | 400 |
| 750 | 3 x 25 | 3.70 | 35 | 90 | - | 400 |
| 1000 | 3 x 25 | 4.70 | 50 | 90 | - | 400 |
| 1250 | 3 x 35 | 5.70 | 60 | 90 | - | 400 |
| 1500 | 3 x 35 | 6.70 | 70 | 90 | - | 400 |
| 1750 | 3 x 35 | 7.70 | 80 | 90 | - | 400 |
| 2000 | 3 x 50 | 8.70 | 100 | 175 | 200 | 520 |
| 2500 | 3 x 80 | 14.70 | 175 | 175 | 250 | 520 |
| 3000 | 3 x 63 | 10.70 | 150 | 175 | 300 | 520 |
| 3500 | 3 x 63 | 12.70 | 175 | 175 | 350 | 520 |
| Capacities > 3500 g/h upon request Systems in this product range are designed specifically for the customer and the dimensions vary accordingly. | ||||||
Scope of delivery:

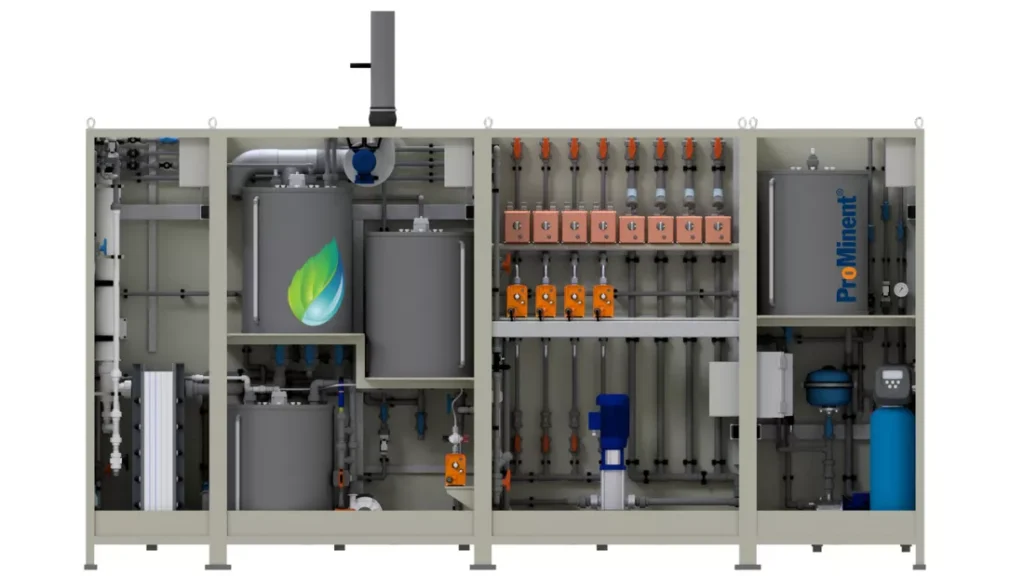

Electrolysis systems of type CHLORINSITU V are ready mounted, wired for use, on a powder coated stainless steel frame with a Programmable Logic Controller (PLC) in the control cabinet, Remote Control Engineer for remote diagnosis and troubleshooting, integrated water softening unit, membrane electrolysis cells, hydrogen bleed system and separate salt dissolving tank with level monitoring. The scope of delivery also includes a frequency-controlled central injector system matched to the system to meter active chlorine and sodium hydroxide solution for pH correction and a single booster pump. A chlorine gas warning unit and automatic monitoring of water hardness downstream of the softening system come as standard with systems producing more than 600 g/h.
Remark
Electrolysis systems of type CHLORINSITU III, V and V Plus are available and planned to meet customer specifications. This is true both for the system documentation and the subsequent supply of spare parts and maintenance.
