CPR-6 is the bench top tablet press machine for small batches. The tableting machine is designed for pharmacies, hospitals, universities and also R&Ds – everywhere a small batch is needed.

R&D Machine

Tablet Press

Tablet press machine - small batches

Tablet Press Machine

CPR-6

Introduction

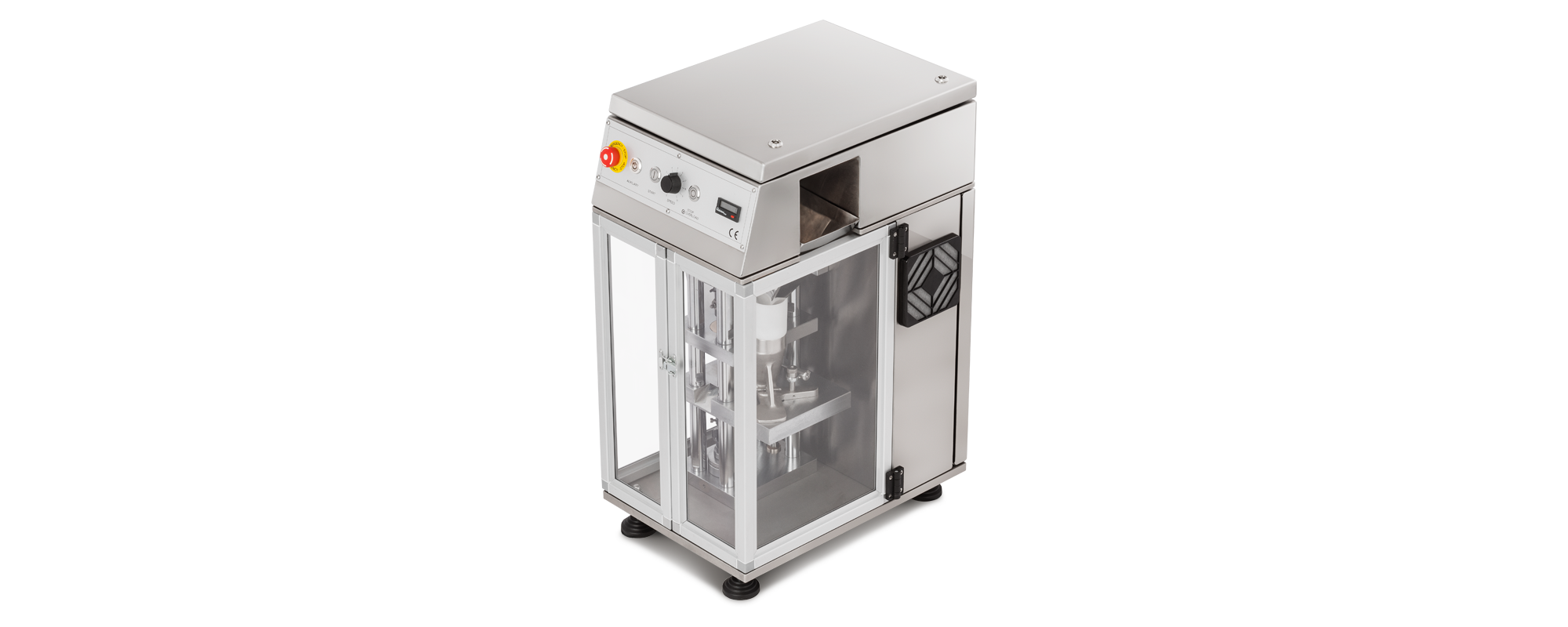

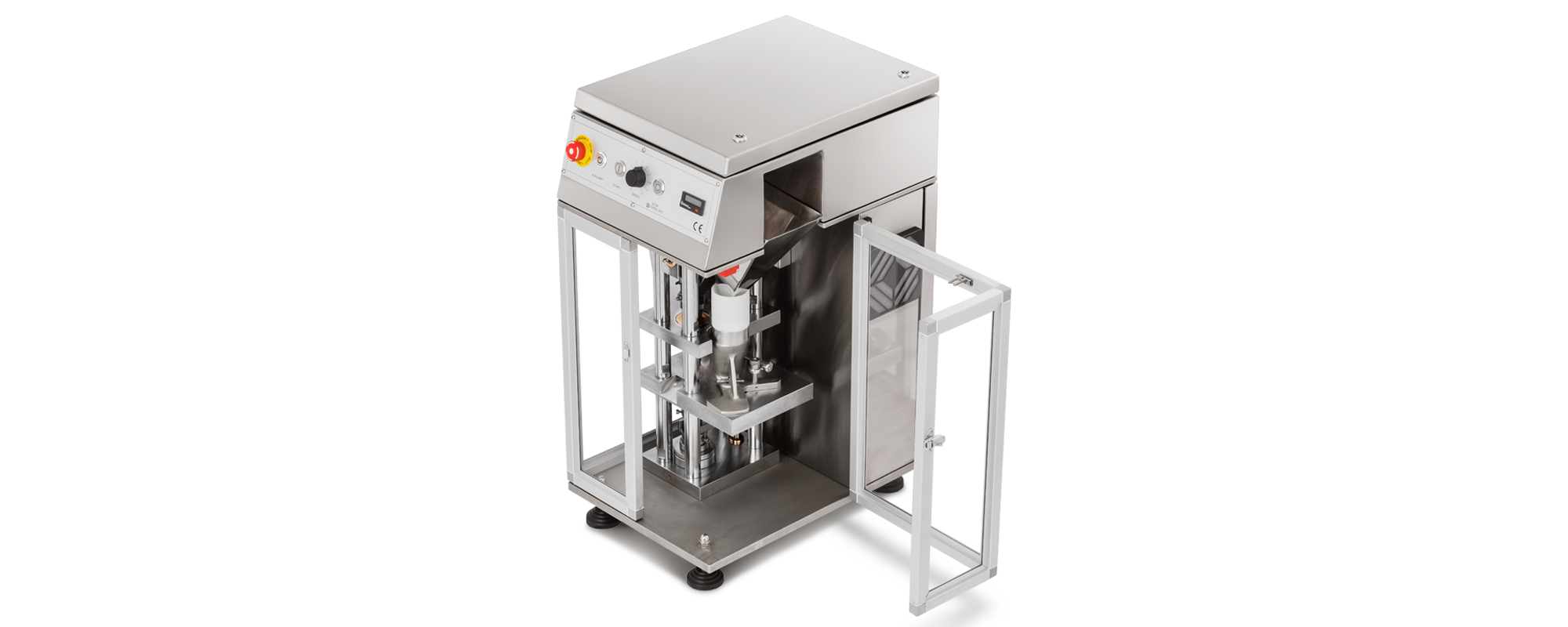

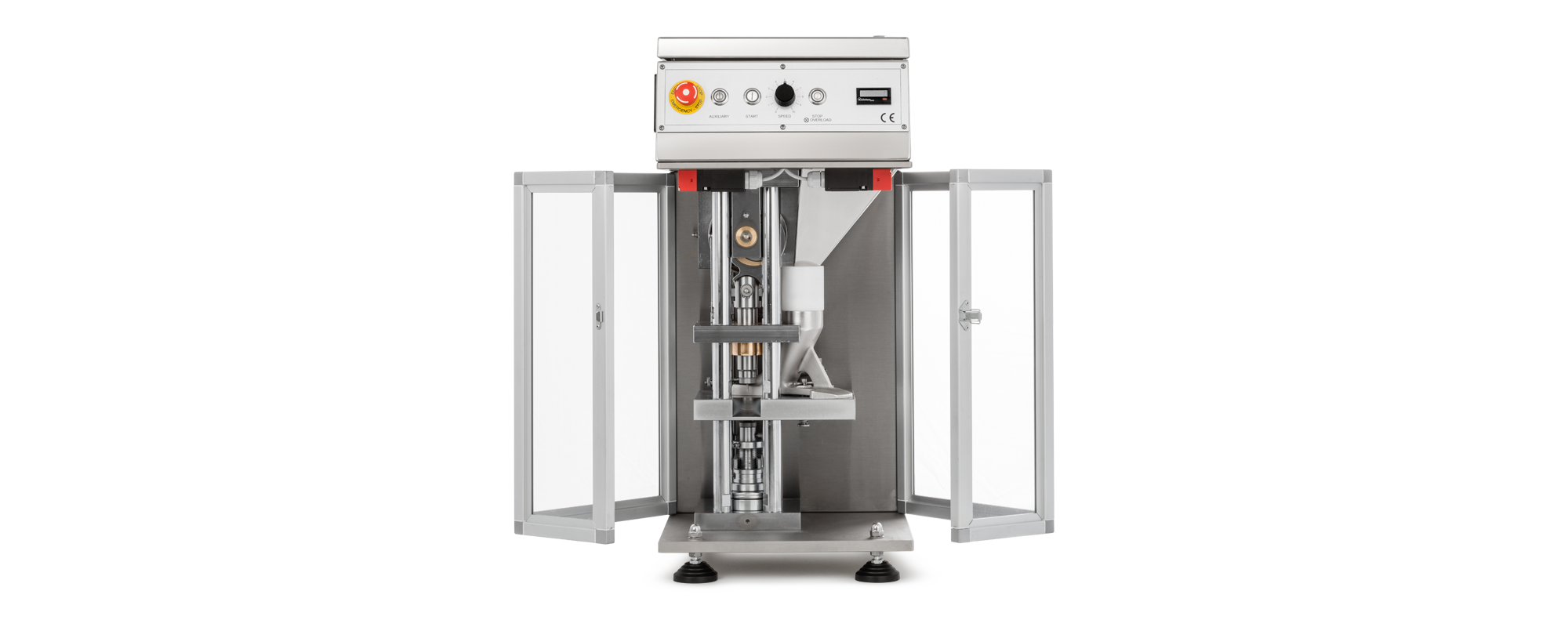

CPR-6 is the bench top tablet press machine for small batches. The tableting machine is designed for pharmacies, hospitals, universities and also R&Ds – everywhere a small batch is needed. The output is 2500 tabs/h and it is completely manufactured in Italy according CE and GMP rules. The tablet press CPR-6 could be placed anywhere the operator wants thanks to its dimensions. This tablet punching machine can be equipped also with multi-punch.

Models

Technical Info

CPR_6
STATIONS NUMBER1
MAXIMUM TABLETS DIAMETER16 mm
MAXIMUM COMPRESSION FORCE2,5 t
DEPTH OF FILL17 mm maximum
TABLET/HOURadjustable 0 /2.500
UPPER PUNCH PENETRATION0-8 mm
HOPPERopen gravity feeder
MOTOR POWDER0,37 KW
SPEED CONTROLvariable by means of inverter
ELETRIC SPECIFICATIONS230 V - 50 Hz - single-phase
NET WEIGHT80,00 kg
SIZE (Machine's dimensions)350 x 510 x 760 H. mm
