DULCOFLEX DFYa

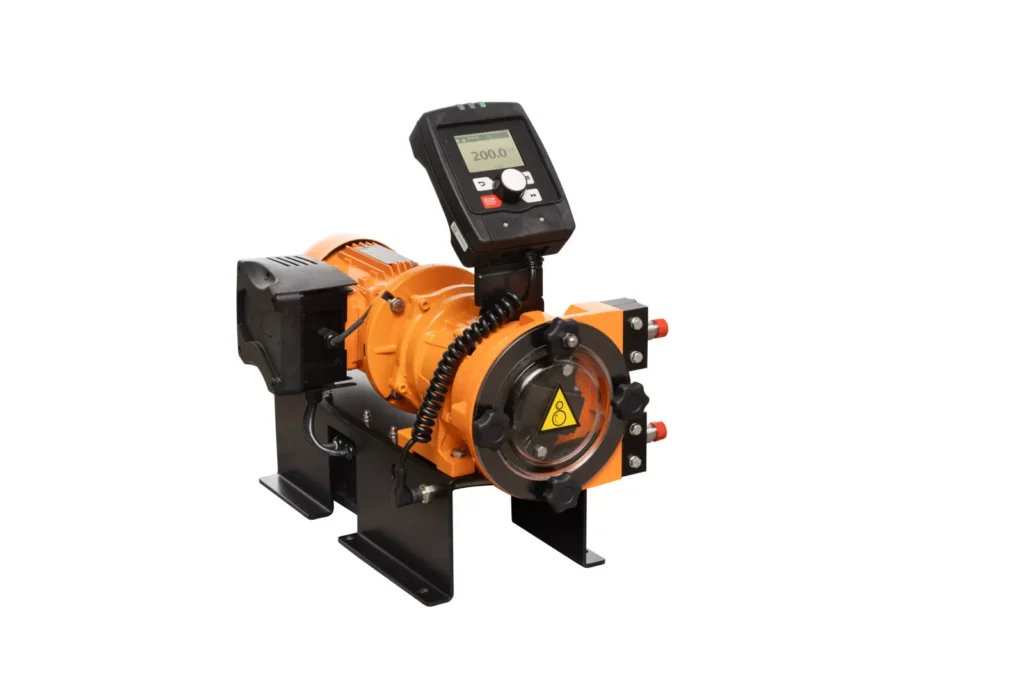

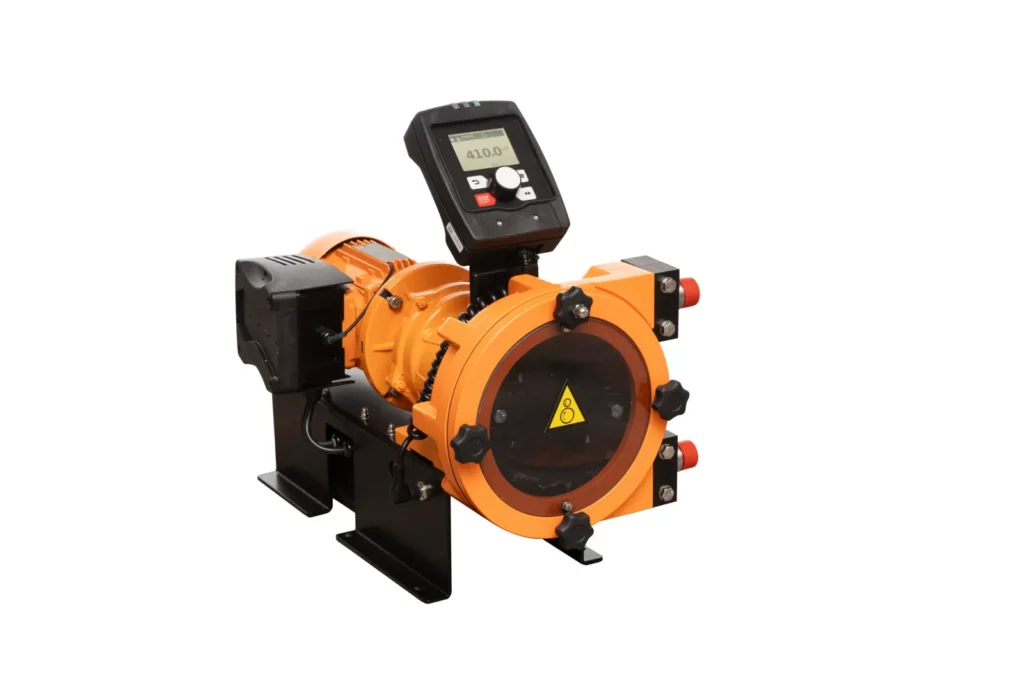

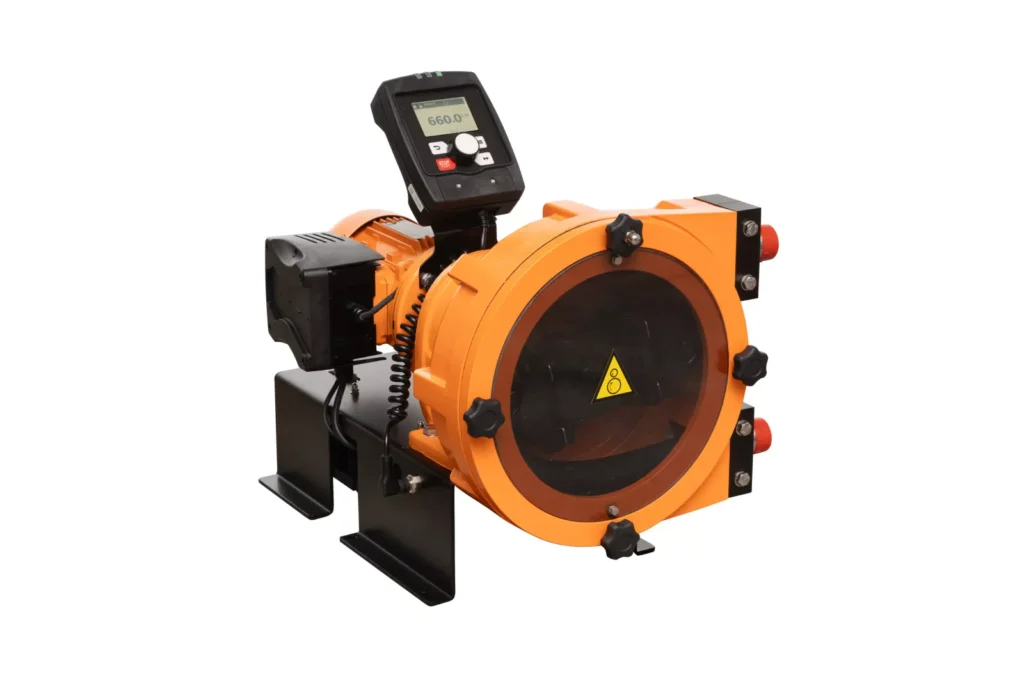

3 variants with maximum flow rates of 200, 410 and 660 l/h at up to 8 bar back pressure
The valveless peristaltic metering pump DULCOFLEX DFYa delivers precise, linear and reproducible metering in all process conditions. It is highly suited to outgassing, viscose, shear-sensitive media, possibly containing particles – ProMinent is therefore setting new standards in metering with peristaltic pumps.
The peristaltic metering pump DULCOFLEX DFYa is the only one of its kind that can be controlled totally electronically and features a fibre-reinforced hose and a display
The DFYa metering pump product range adds 3 intelligent peristaltic pumps with a maximum capacity of 200, 410 and 660 l/h to the top capacity range of the ProMinent portfolio.
The DFYa peristaltic metering pumps can be controlled electronically. It meters without the need for a valve and with a level of precision not previously possible. And yet it retains all the benefits of a peristaltic pump, which is why highly outgassing, high-viscosity, abrasive or shear-sensitive fluids, sometimes containing particles, can also be perfectly metered with the DFYa.
As with the DFXa, hose replacement on the DFYa is also assisted by the pump. When the hose needs to be changed, the pump displays exact instructions for the steps to be followed and automatically moves into the correct positions for hose replacement. The different hose materials (NR, NBR, NBR-A, EPDM Hypalon) enable the DFYa to work with a very wide range of media to be metered.
The peristaltic pump DFYa is simple to operate from the intuitive user interface with 4 keys and the click wheel. The DFYa is therefore a new addition to rest of the ProMinent product range of intelligent metering pumps, which all share the same menu structure and user interface.
The DULCOFLEX DFYa offers various connectivity options and is IoT-capable. It can therefore be connected to the DULCONNEX IIoT solution, developed by ProMinent.
Your benefits
- Operation by contact, batch, manual, analogue or BUS control
- Adjustment of the metering rate directly in l/h
- Connection to process control systems via a BUS interface, such PROFIBUS or CANopen
- No problems with very outgassing media or air locks
- Simple, menu-based hose change
- Reversible direction of rotation
Technical Data
- Illuminated 3” LCD and 3-LED display for operating, warning and error messages, visible from all sides
- Depending on the type selected, the feed rate can be adjusted between 2.5 and 660 l/h
- Batch operation with max. 999.9 l/pulse
- Connector for 2-stage level switch
- Optional relay module with 1 x switch-over contact, 230 V – 6 A
- Optional relay module with 2 x On, 24 V – 100 mA
- DULCONNEX-capable
Technical Detail
| Type | Maximum back pressure | Delivery rate | Frequency | Connection size | Suction lift | Shipping weight |
|---|---|---|---|---|---|---|
| bar | rpm | m WC | kg | |||
| 04200 | 4 | 207 l/h ±10 % | 100 | 3/8" | 8 | 25 |
| 06200 | 6 | 207 l/h ±10 % | 100 | 3/8" | 8 | 25 |
| 08200 | 8 | 207 l/h ±10 % | 100 | 3/8" | 8 | 25 |
| 04410 | 4 | 410 l/h ±10 % | 80 | 3/4" | 8 | 30 |
| 06410 | 6 | 410 l/h ±10 % | 80 | 3/4" | 8 | 30 |
| 08410 | 8 | 410 l/h ±10 % | 80 | 3/4" | 8 | 30 |
| 02660 | 2 | 660 l/h ±10 % | 50 | 1" | 8 | 49 |
| 04660 | 4 | 660 l/h ±10 % | 50 | 1" | 8 | 49 |
| Hose material: | NR, NBR, EPDM, NBR-A, Hypalon | |||||
| Self-priming: | Up to 8 m | |||||
| Rollers/shoes: | Rollers | |||||
| Repeatability of metering (type 200/410/660): | ± 2 % ±10/25/55ml with retracted hose after 500 revolutions | |||||
| Electrical connection: | 100 - 230 V ±10%, 50/60 Hz | |||||
| Electrical power consumption: | Type 200 = 250W; type 410 = 420W; type 660 = 600W | |||||
| Degree of protection: | IP 55 | |||||
| Permissible ambient temperature: | 0 … 45 °C | |||||
