DULCOTEST
Measuring ranges 0 – 100 °C
Temperature measurement with DULCOTEST sensors: Can be used for direct temperature measurement or temperature compensation during measurement of pH, fluoride, conductivity, chlorine dioxide or hydrogen peroxide.
Temperature measurement with the reliable DULCOTEST sensors
Temperature measurement can take place separately or as a correction variable for other measured parameters.
Temperature measurement is used universally, either to directly measure the temperature or for temperature compensation when measuring the following parameters:
- pH
- Fluoride
- Conductivity
- Chlorine dioxide
- Hydrogen peroxide
Your benefits
- Select Pt 100 or Pt 1000, depending on measuring range and accuracy required.
- Sturdy design with dimensions of a standard pH sensor; the sensor element is integrated in a chemically inert glass sleeve.
- Easily installed in a similar way to standard pH sensors with a PG 13.5 thread in existing fittings.
- Transmitter with display/operation and without display/operation for transmission/conversion of the primary signal into a 4-20 mA signal and for transmission to a central control unit (PLC).
Technical Info
- Type Pt 100: for wide range measurements and with the controllers D1C, DAC and DULCOMARIN 3
- Type Pt 1000: for high resolution with transmitter DMT and controllers DAC and DULCOMARIN 3

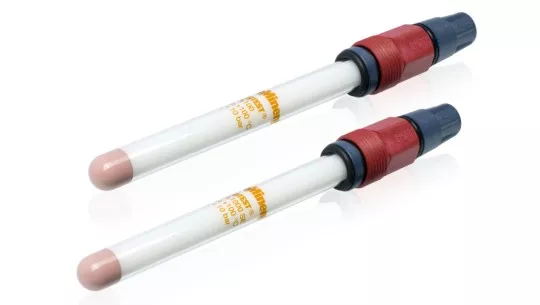

DULCOTEST Temperature Sensors
Temperature measurement with DULCOTEST sensors: Can be used for direct temperature measurement or temperature compensation during measurement of pH, fluoride, conductivity, chlorine dioxide or hydrogen peroxide.
Your Benefits
- Select Pt 100 or Pt 1000, depending on measuring range and accuracy required.
- Sturdy design with dimensions of a standard pH sensor; the sensor element is integrated in a chemically inert glass sleeve.
- Easily installed in a similar way to standard pH sensors with a PG 13.5 thread in existing fittings.
- Transmitter with display/operation and without display/operation for transmission/conversion of the primary signal into a 4-20 mA signal and for transmission to a central control unit (PLC).
Technical Details
- Type Pt 100: for wide range measurements and with the controllers D1C, DAC and DULCOMARIN 3
- Type Pt 1000: for high resolution with transmitter DMT and controllers DAC and DULCOMARIN 3
Field of Application
- Temperature measurement is universally used either to directly measure the temperature or for temperature compensation.
Temperature | 0…100 °C |
Max. pressure | 10.0 bar |
Thread | PG 13.5 |
Electrical Connection | SN6 |
Typical applications | Temperature measurement and pH temperature correction. |
Order no. | |
|---|---|
Pt 100-SE temperature sensor | 305063 |
Pt 1000-SE temperature sensor | 1002856 |
