eFlex
Introduction

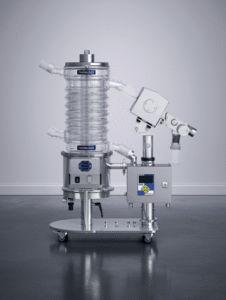

The eFlex range is a tablet deduster based on a new generation of segmented, modular spiral molded in Tritan Copolyester.
Each of the spiral segments can be removed individually for easy dismantling, cleaning, and validation, has a high degree of robustness, and is fully transparent. The clear segments provide a 360° direct view to the tablets throughout the process.
This unit uses enlarged circumferential dust extraction channels and central air jets on the tablets, immediately separating any powder excess during the dedusting process.
It only takes seconds to convey the tablets to the deduster outlet and provide excellent dedusting efficiency.
Utmost care has been taken to simplify the design in order to reduce the amount of parts to be assembled and disassembled, and to eliminate the need for tooling
Technical Info
| Technical data for all units: | eFlex |
|---|---|
| Minium product size | Ø 4 mm |
| Maximum product size | Ø 25 mm |
| Conveying adjustment | Frequency / Voltage |
| Self emptying | Yes (without aspiration) |
| Requested air extraction | 150 to 200 m³/h pressure drop 1500 to 2000Pa |
| Dust extraction connection | TC ISO 1127 DN 50 |
| Requested compressed air | Min. 5 bar |
| Compressed air connection | QS6 |
| Noise level (without product) | ≤68 dB (A) |
| Power supply | 110V / 230V |
| Frequency | 50 Hz / 60 Hz |
| Polymer contact parts | FDA Tritan MX 711 |
| Contact parts finishing | RA < 0,5 μm |
| Frame parts | Stainless steel 304 |
| Frame finishing | Brushed 320 |
| Frame mounted on wheels | Yes |
| IQ-OQ protocol | Available |
| Material ceftificates | Available |
■ Suitable for most high-speed tablet
presses
■ cGMP compliance
■ FDA-certified high-tech polymer
■ Patented dust extraction solution
■ Ergonomic, efficient and reliable
■ Fast cleaning, easy validation
■ Easy to maintain
■ Small footprint
