Capsule Filling Unit – The KAP-300 is suitable to open, fill and closed empty hard gelatine capsules already oriented on a 300 holes try and to ensure the correct and easy distribution of the powder into the capsules.

R&D Machine

Capsule Filler

Need a large model? Here is the answer. KAP-300 capsule filling unit

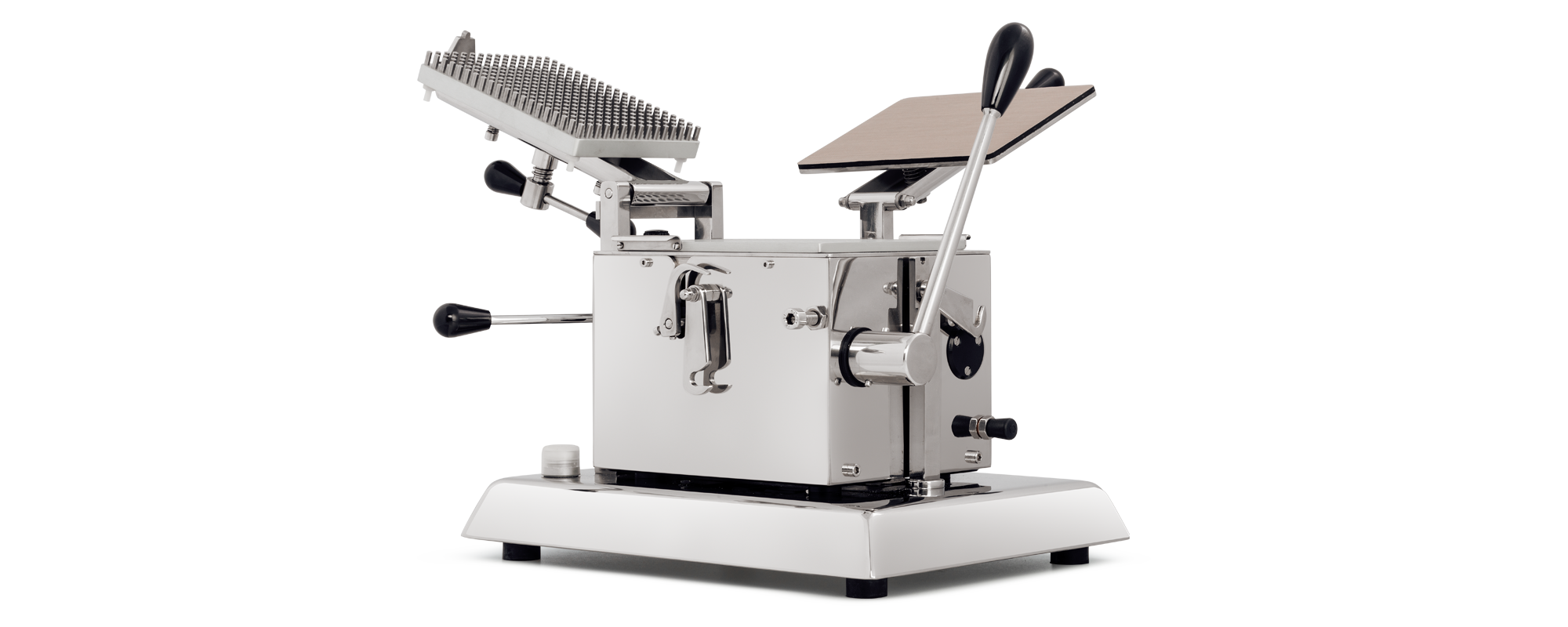

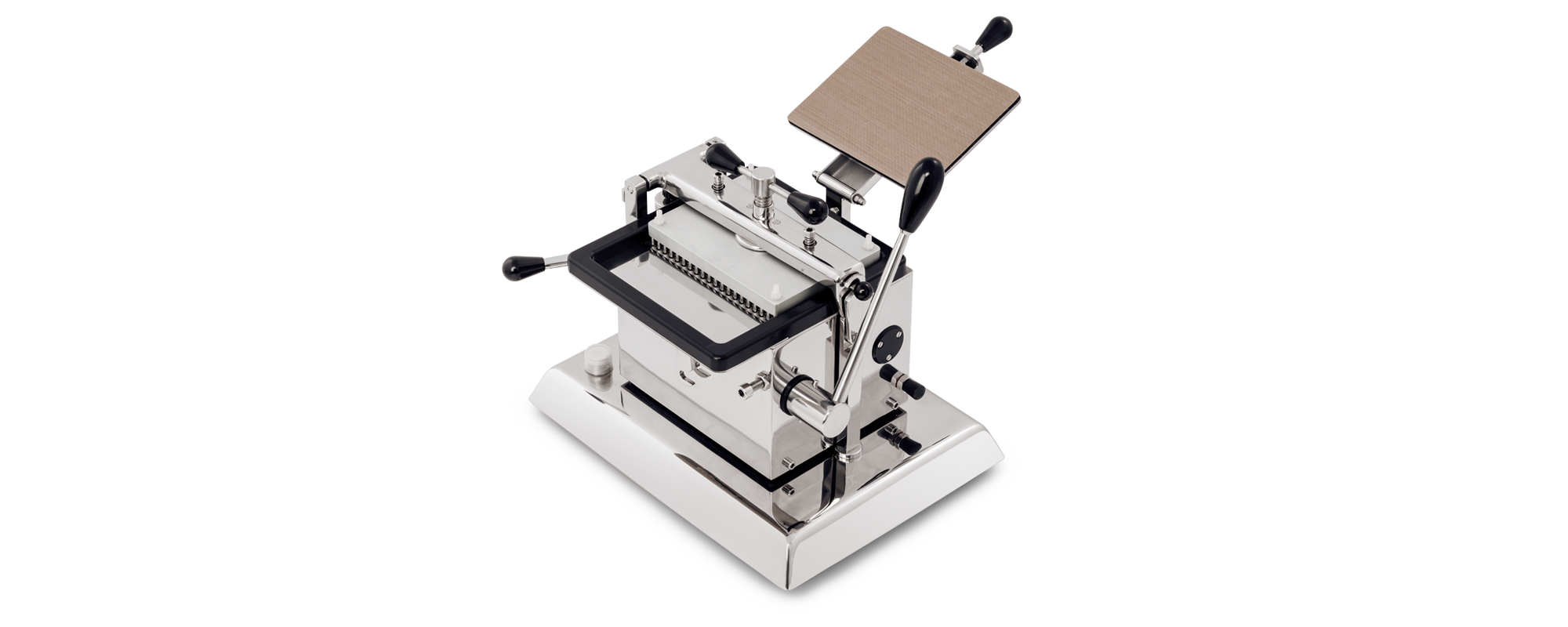

Capsule Filling Unit

KAP-300

Introduction

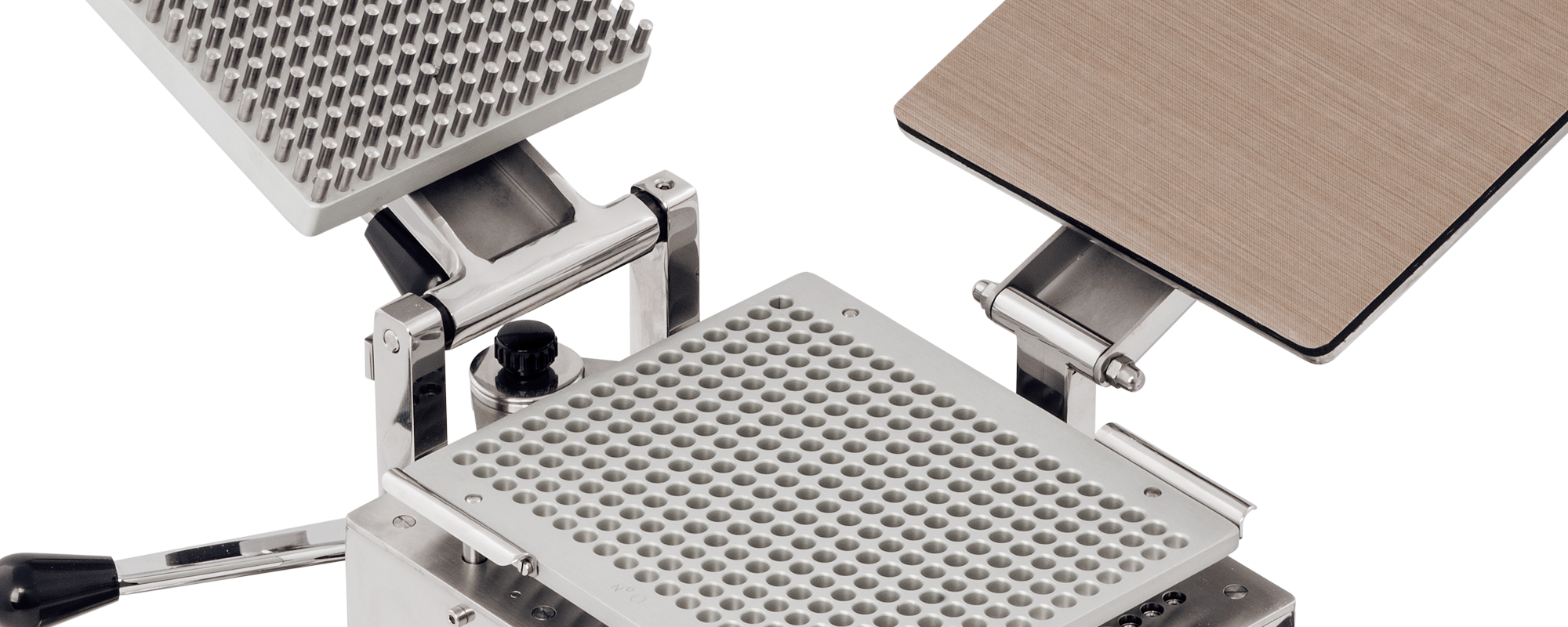

The KAP-300 is suitable to open, fill and closed empty hard gelatine capsules already oriented on a 300 holes try and to ensure the correct and easy distribution of the powder into the capsules.

The stainless steel box containing the electrical parts is complete of an electromagnetic and vibrating system, it is fully disassemblable and 100% at water tight. For this reason, the machine can be washed inside by ensuring a good cleaning as per the GMP rules.



Technical Info

KAP-300
SIZE350 x 450 x 400 H. mm
NET WEIGHT45,00 kg
CAPSULE SIZE00 - 0 -1 - 2 - 3 - 4
ELECTRIC VOLTAGE230 V - 50/60 Hz - single phase
ELECTRIC ABSORPTION0,5 KW
