beta/ X
Capacity range 10 ml/h – 50 l/h, 16 – 2 bar

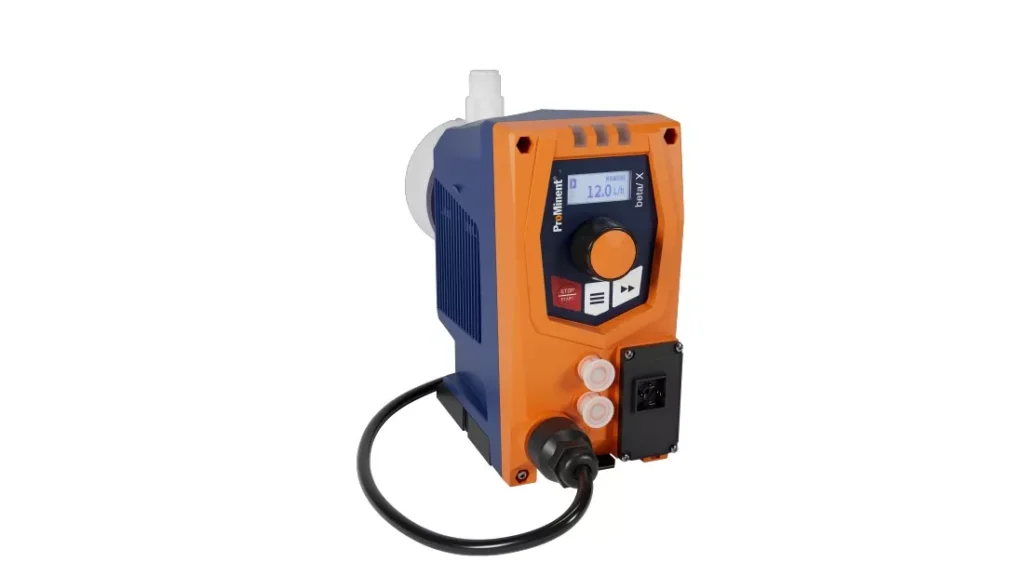

The beta/ X diaphragm metering pump provides simple handling, precise metering and digital networking. With its intuitive operation, robust design and environmentally-friendly PFAS-free variant, it is setting new standards in metering technology.
The new generation – simply beta/ X
The Diaphragm Metering Pump beta/ X is easy to use, meters precisely and is digital.
All aspects of the beta/ X are designed for ease of use. The volume is set directly using an intuitive clickwheel. The volume to be dispensed is set directly on a display. Installation on the floor and on the wall is also quick and easy thanks to the click base.
The reliable metering pump is versatile and robust in use. The special feature of the beta/ X is the digitally controlled drive. This enables continuous dosing and a wide adjustment range. The pump can be used universally thanks to its wide adjustment range, which makes selection much easier and reduces the number of variants.
The dosing heads of the beta/ X are characterized by their good suction properties. The specially shaped head minimizes errors due to air lock. This increases process reliability.
The beta/ X is available in a PFAS-free version, which makes it even more environmentally friendly.
The beta/ X is digitally networkable and can be programmed and read out via smartphone. It has a Bluetooth and NFC interface.
Your benefits
- Simple operation and mounting save time and effort.
- Precise metering and good priming properties improve process reliability.
- Wide adjustment range and robust design for flexible applications.
- Control via a smartphone using Bluetooth and NFC.
- PFAS-free variant available.
Technical Data
- The desired l/h can be set using a click wheel & display.
- Continuous metering with a wide adjustment range of 1:1000.
- Enhanced process reliability thanks to improved priming and optimised handling of air locks.
- Available in PFAS-free variant.
- Bluetooth and NFC interfaces.
- Energy-efficient: The beta/ X is twice as energy efficient as its comparable predecessor model.
Technical Detail
| Pump type | Pump capacity at max. back pressure | Stroke rate | Connector size o Ø x i Ø | Suction lift | Shipping weight | |||
|---|---|---|---|---|---|---|---|---|
| PV, PE | SS | |||||||
| bar | l/h | ml/stroke | Strokes/min | mm | m WC | kg | kg | |
| BTXb 16006 | 16 | 6 | 0.50 | 200 | 6 x 4 | 5 | 2.4 | 2.9 |
| BTXb 07018 | 7 | 18 | 1.5 | 200 | 8 x 5 | 4 | 2.6 | 3.9 |
| BTXb 04028 | 4 | 27.6 | 2.30 | 200 | 12 x 9 | 4 | 2.6 | 4.0 |
| BTXb 02050 | 2 | 50.4 | 4.20 | 200 | 12 x 9 | 3 | 2.7 | 4.5 |
The vPTFE diaphragm and vPE diaphragm are limited to a maximum operating pressure of 10 bar. The delivery rates of the dosing pumps with vPTFE diaphragm and vPE diaphragm can deviate by 10-20 % compared to the standard diaphragm.
Materials in Contact with the Medium
| Identity code of material | Dosing head | Connection on suction/discharge side | Ball seat | Seals | Balls |
|---|---|---|---|---|---|
| PVT | PVDF | PVDF | PEEK | Standard diaphragm - Wetted PTFE | Ceramic AL203 |
| PVM | PVDF | PVDF | PEEK | Full PTFE membrane | Ceramic AL203 |
| PET | PE | PE | PEEK | Standard diaphragm - Wetted PTFE | Ceramic AL203 |
| PEP | PE | PE | PEEK | Full PTFE membrane | Ceramic AL203 |
| SST | Stainless steel 1.4404 | Stainless steel 1.4404 | Ceramic ZrO2 | Standard diaphragm - Wetted PTFE | Ceramic AL203 |
Repeatability of dosing: ±1 % when used in accordance with the instructions in the operating manual
Permissible ambient temperature: -10 °C to +45 °C
Average power consumption: 3.4 … 16.5 W
Protection class: IP 66, NEMA 4X, insulation class F
