The revolution in Direct Compression.
A new technology – a major step forward. The FE CPS is ready to make continuous Direct Compression as compact, efficient and easy as you have been demanding for a long time. Here you can find out what makes the FE CPS such a game-changer in state-of-the-art solids production.

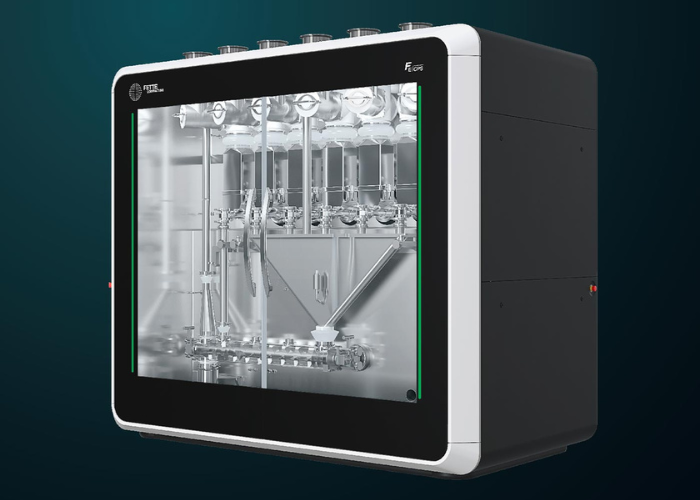

Continuous Mixer
FE CPS
Introduction

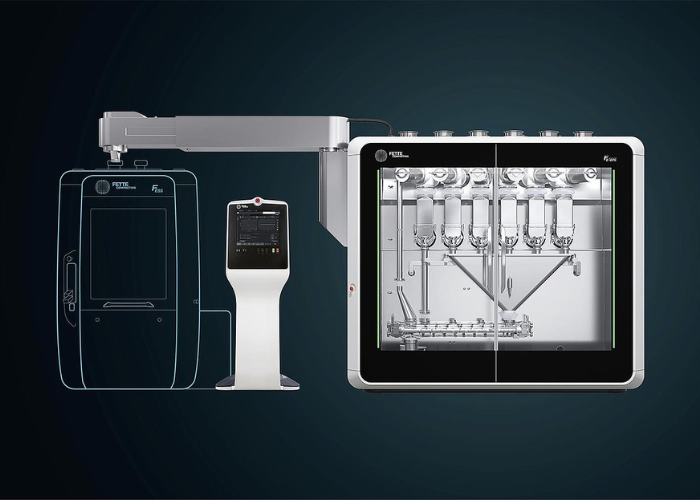

Fette Compacting reaches the next level of continuity with its new Direct Compression system. It consists of continuous dosing-blending-conveying system FE CPS, combined with an FE55 tablet press, and an Human Machine Interface (HMI).
The plant footprint can be reduced to up to 5 x 6.5 meters through flexible installation. A wide range of formulations with throughput margins of about five to 200 kilograms/hour is possible. The rotary press has three compression stations instead of two.
Technical Info
| FE CPS | ||||
|---|---|---|---|---|
| Special features | - Vertical or horizontal set-up installation - Flexible dosing-blending-convey module - Separated a process area and a technical area - Fast and easy product changeover capability - Fully embedded Process Analytical Technology - TRI.EASY Design | |||
| Throughput capacity | 10 ~ 200 kg/h (formulation and tablet dependent) | |||
| Dimensions and Weight | Height | Width | Depth | Weight |
| 2,300 mm | 2,650 mm | 925 mm | approx. 5,000 - 5,500 kg | |
